wedi Fundo Ligno Plus floor element, offset drain 1200x900x23mm

£285.73 £238.11

Conventional floor level showers/classic systems – point drainage

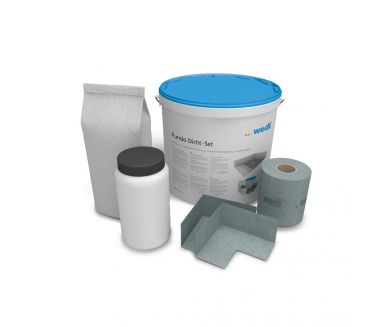

Classic systems consist of a floor-level shower element and a corresponding drain. There are numerous drain versions available to choose from to suit all requirements. The scope of delivery includes a standard stainless steel grate (Fino1.1) High-quality designer grates for point drainage can also be found and purchased separately from the wedi product range. The entire perimeter of wedi shower elements is sealed with the Fundo sealing set which was developed by wedi especially for this purpose. *to be purchased separately*

Looking for another size? Find the 1600x1000x23mm here

Versatile. Reliable. Fundo.
The main characteristics of wedi flush-to-floor showers are quality, reliability and functionality paired with straightforward, safe and quick installation.
Whether a conventional floor element or a complete system with integrated technology with either classic point drainage or elegant linear drainage – whatever the requirement is, the right floor element can be found in the Fundo series: 10 designs, 3 different drain locations and numerous sizes to meet the high demand of planners, contractors and installers.

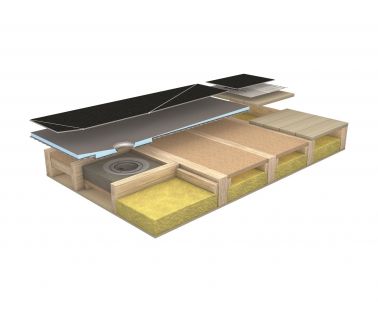

Point drainage for suspended timber floors – FUNDO LIGNO
The Fundo Ligno shower element with outer edges of just 20mm has been specially developed for use in existing and new builds with wooden floors. In contrast to traditional shower elements, the wedi Fundo Ligno is adapted to the covering wood layer and as a result can be integrated into it wonderfully without cutting into floor joists or building up further height. However it can also be installed on top of floorboards in conjunction with wedi building boards to level the height on site.

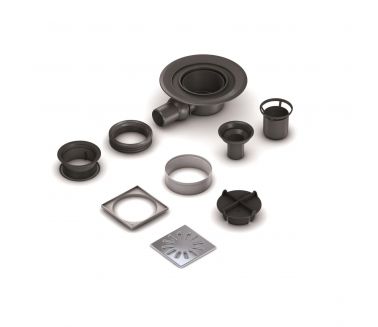

Horizontal DN50 drain (s/s grate included)

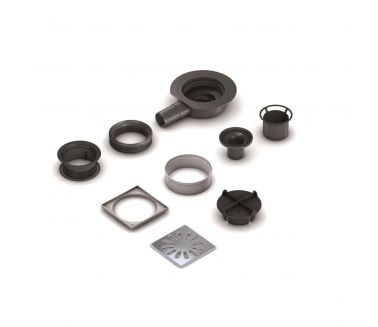

Flat Horizontal DN40 drain (s/s grate included)

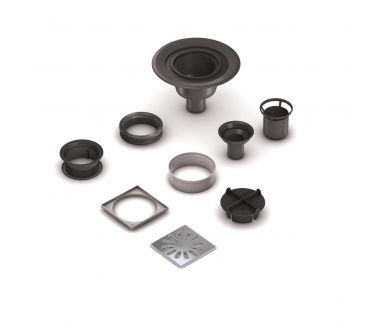

Vertical DN50 drain (s/s grate included)

Drain Substructure element

Product Size  :  1200x900x20/41mm

Packaging :  1 piece

Product data Sheet  click here for pdf

Installation Guide  click here for pdf

More Information
Category Floor Level Showers
